Descrizione
| Specification | Value |
|---|---|
| Model | DAIKIN AKZ149 |
| Product type | Circulating inverter oil cooling unit |
| Equivalent horsepower | 0.5 HP |
| Cooling capacity | 1.3 kW at 50 Hz / 1.4 kW at 60 Hz |
| Power supply | Three-phase AC 200 / 200–220 V, 50/60 Hz |
| Maximum power consumption | 0.90 kW at 50 Hz; 0.91 kW at 60 Hz |
| Overall dimensions H × W × D | 650 × 360 × 440 mm |
| Mass | 51 kg |
| Oil pump theoretical discharge | 12 L/min at 50 Hz / 14.4 L/min at 60 Hz |
| Pump open pressure | 0.5 MPa |
| Operating ambient temperature | 5 to 45 °C |
| Inlet oil temperature | 5 to 50 °C |
| Usable oil viscosity | 1.4 to 200 mm²/s, ISO VG2 to VG32 |
| Oil connections | Inlet Rc3/4; outlet Rc3/4 |
| Refrigerant | R410A, 0.49 kg |
| Noise value | 62 dB(A) |
| Electrical enclosure protection | IP54 equivalent |
Descrizione Prodotto

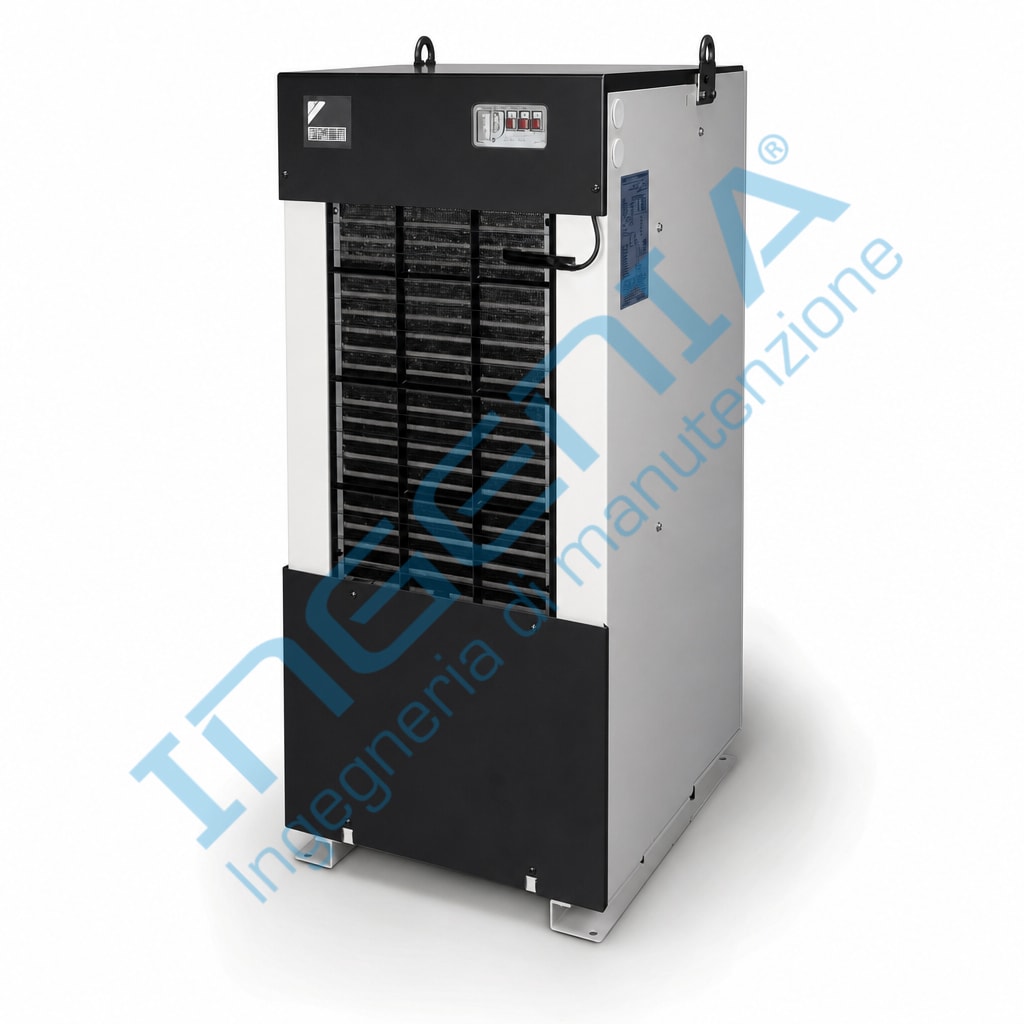

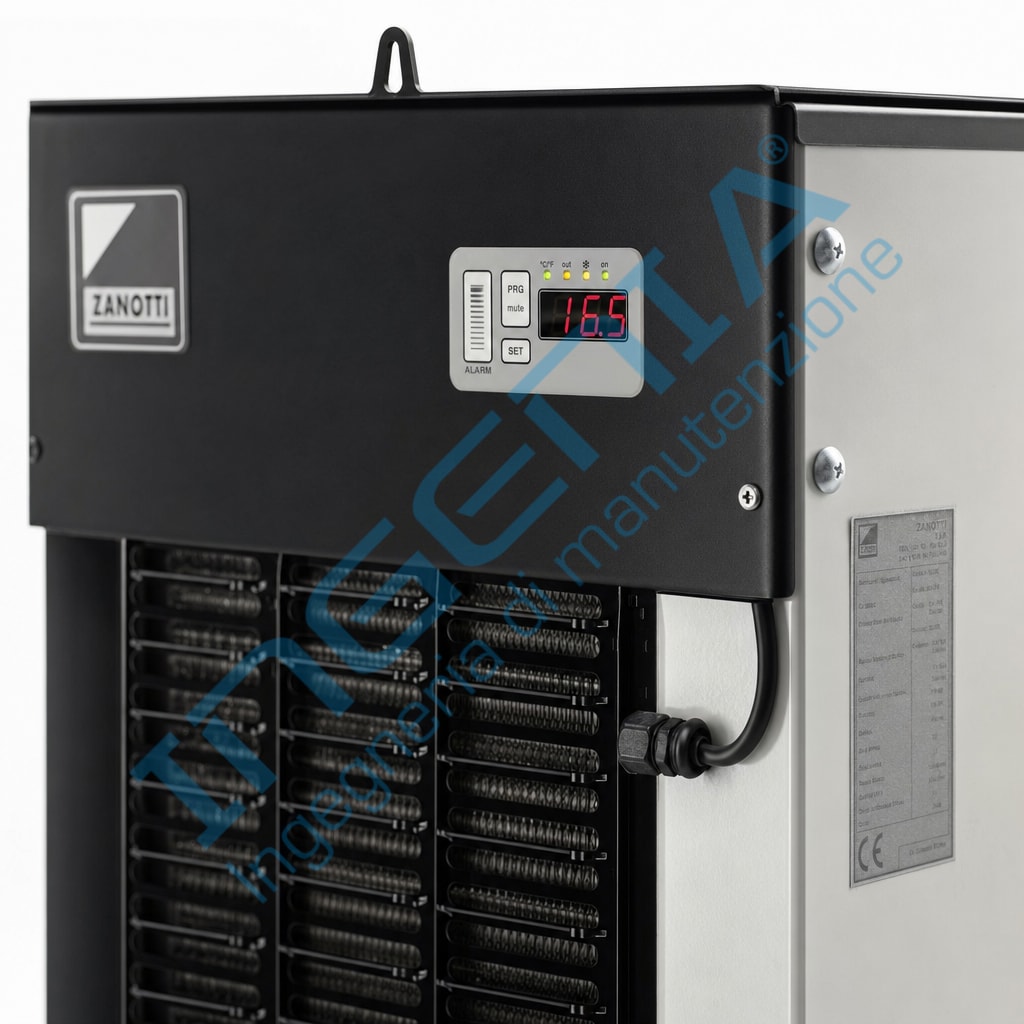

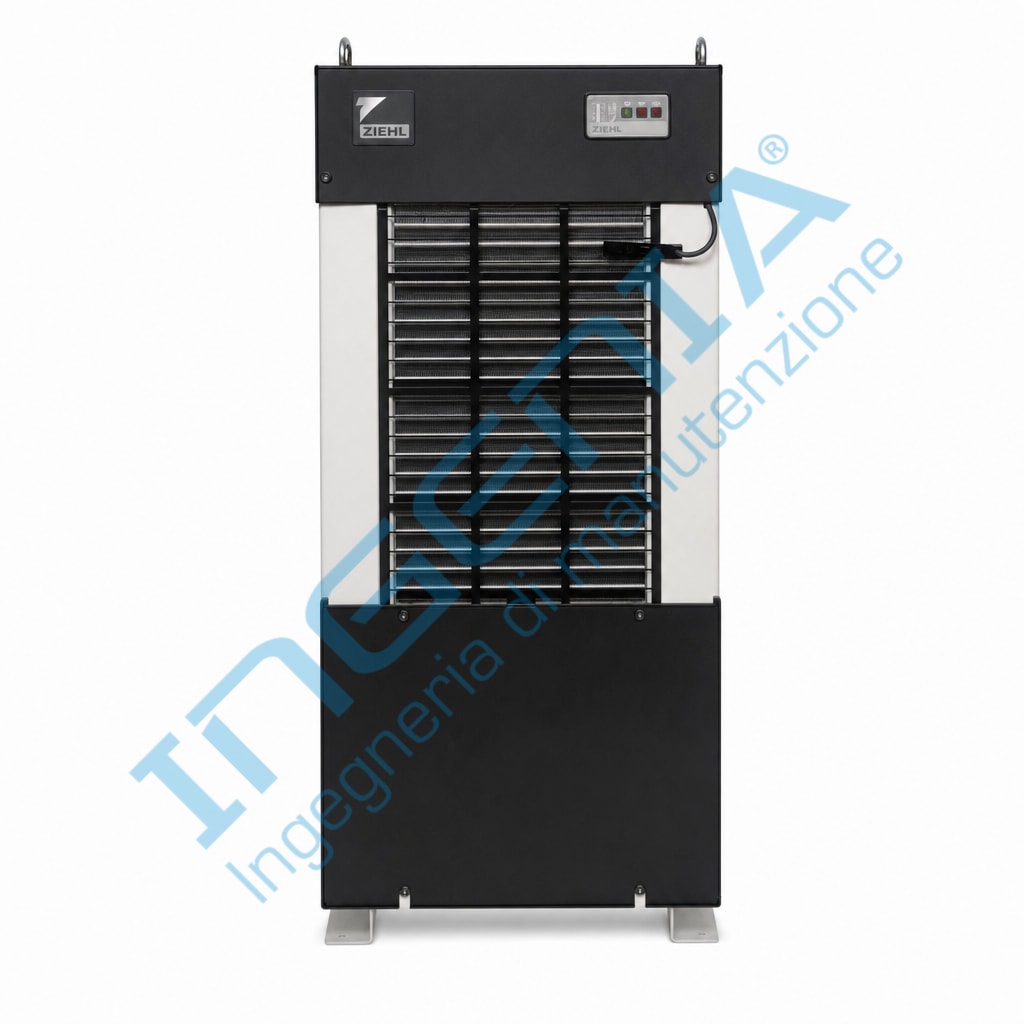

DAIKIN AKZ149 è un chiller ad olio a circolazione della serie AKZ9, progettato per il controllo termico di oli lubrificanti e fluidi idraulici a base minerale. L’unità impiega un compressore controllato da inverter e fornisce una capacità frigorifera di 1,3 kW a 50 Hz e 1,4 kW a 60 Hz. La pompa integrata eroga una portata teorica di 12/14,4 L/min con pressione libera di 0,5 MPa. Le connessioni olio Rc3/4 consentono l’integrazione in circuiti di lubrificazione e raffreddamento macchina.
Product Description
The DAIKIN AKZ149 is a circulating oil cooling chiller from the AKZ9 series, engineered for thermal control of lubricating oils and mineral oil-based hydraulic fluids. Its inverter-controlled compressor provides 1.3 kW cooling capacity at 50 Hz and 1.4 kW at 60 Hz. The integrated pump delivers a theoretical flow rate of 12/14.4 L/min at 0.5 MPa open pressure. Rc3/4 oil ports support installation in machine lubrication and oil cooling circuits.
Applicazioni / Applications
- Raffreddamento dell’olio per mandrini e sistemi di lubrificazione / Oil cooling for spindles and lubrication systems
- Circuiti idraulici con fluidi minerali compatibili / Hydraulic circuits using compatible mineral oil-based fluids
- Macchine utensili CNC e apparecchiature industriali / CNC machine tools and industrial equipment
- Stabilizzazione termica dei circuiti di processo a olio / Thermal stabilization of oil process circuits
